Sonel EasiPAT 2

Write a review

$1,490.00 excluding GST
$1,713.50 Including GST

Description

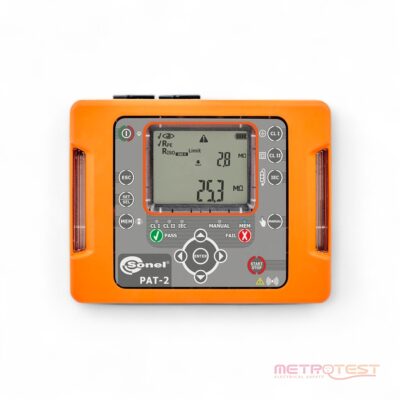

Sonel Metro EasiPAT Portable Appliance Tester

This amazing little (PAT) fully functioned Portable Appliance Tester is the next step in do it yourself testing.

Includes:

  •  PRCD (portable Residual Current Device) testing
  •  Battery & mains operated (requires mains for powered up leakage testing)
  •  Powered up leakage testing
  •  Insulation testing
  •  Polarity testing
  •  Earth Test: 200mA
  •  Flashing warning lights when used for powered up testing-providing extra safety for the operator
  •  1 Push test selection
  •  Bright Pass/Fail Indicator
  •  Light up LCD display
  •  Direct Wi-Fi Capable
  •  Great carry bag with room for all your accessories and mini thermal transfer printer (Tough Tags)

Basic limited memory capability:

the tester has a built in a basic memory recall which can be downloaded with Sonel Pats Reader.

Reviews

There are no reviews yet.

Be the first to review “Sonel EasiPAT 2”

Videos

More news coming soon

‹›

View More…

Book A Consultation

More Details

PAT-2E
Visual inspection ✔
Earth bond resistance I = 200 mA + (0,01…19,99 Ω)
Insulation resistance U = 250 V + (0,01…99,9 MΩ)
Insulation resistance U = 500 V + (0,01…99,9 MΩ)
Alternative leakage current + (0,01…19,9 mA)
Touch leakage current + (0,001…4,999 mA)
Differential leakage current + (0,10…19,9 mA)
IEC cord test (RISO, RPE, Polarity) ✔
PRCD (trip time for IΔn: x1/x5; 0° and 180°) 10 mA, 30 mA
Built-in Memory ✔
WiFi ✔
Cooperation with printer ✔
Data transmition to PC ✔
Power supply 50 Hz (or 60Hz) U nominal. 220V.230V.240V / battery powered
Measurement Category: CAT II 300V ✔
Weight [kg] / size [cm]  1.55 kg / 200 mm x 180 mm x 77 mm
