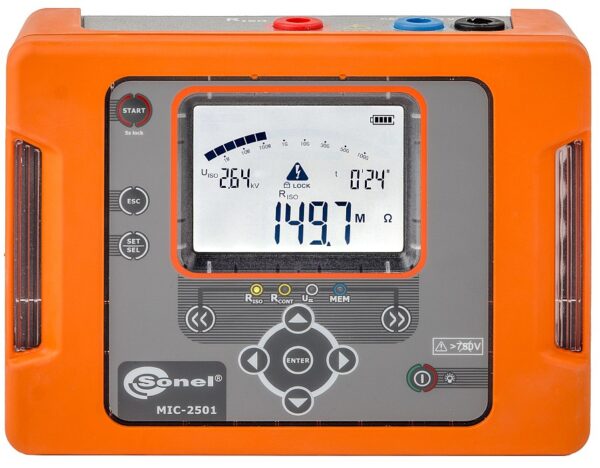

MIC-2501 Insulation Resistance Meter WMGBMIC2501

Description

• Insulation resistance measurement:
  • selectable measurement voltage in the 100…2500 V range with 100 V step,
  • continuous indication of insulation resistance or leakage current,
  • automatic discharge of capacitance of tested object after the insulation resistance measurement,
  • acoustic signaling of five-second periods to facilitate obtaining time characteristics,
  • measured test times T₁, T₂ i T₃ to measure one or two absorption coefficients in 15, 60 and 600 s,
  • indication of actual test voltage during the measurement,
  • protection against measuring live objects,
  • two and three-lead measurement method,
• Continuity measurement of protective and equipotential conductors according to EN 61557-4
• with the >200 mA current.
• Leakage current measurement.
• Measurement of alternating and direct voltages in the 0…750 V range.
• Built-in rechargeable battery pack.
• The instruments meet the requirements of the EN 61557 standard.
• The ability to charge from car lighter (12 V) socket (additional accessories)

Technical Specifications

Range	Resolution	Accuracy
0,0…999,9 kΩ	0,1 kΩ	±(3% m.v. + 20 digits)
1,000…9,999 MΩ	0,001 MΩ	±(3% m.v. + 20 digits)
10,00…99,99 MΩ	0,01 MΩ	±(3% m.v. + 20 digits)
100,0…999,9 MΩ	0,1 MΩ	±(3% m.v. + 20 digits)
1,000…9,999 GΩ	0,001 GΩ	±(3% m.v. + 20 digits)
10,00…99,99 GΩ	0,01 GΩ	±(3% m.v. + 20 digits)
100,0…999,9 GΩ	0,1 GΩ	±(3% m.v. + 20 digits)

Values of measured resistance depending on measurement voltage

Voltage UISO	Measurement range
100 V	50 GΩ
200…400 V	100 GΩ
500…900 V	250 GΩ
1000…2400 V	500 GΩ
2500 V	1000 GΩ

Continuity measurement of protective connections and equipotential bonding with 200 mA current.
Measurement range acc. to EN 61557-4: 0,10…999 Ω

Range	Resolution	Accuracy
0,00…19,99 Ω	0,01 Ω	±(2% m.v. + 3 digits)
20,0…199,9 Ω	0,1 Ω	±(2% m.v. + 3 digits)
200…999 Ω	1 Ω	±(4% m.v. + 3 digits)

• Voltage on open terminals: 4…24 V
• Output current at R <2 Ω: I_SC >200 mA
• Compensation of test lead resistance
• Current flowing in both directions, mean value of resistance is displayed

DC and AC voltage measurement

Range	Resolution	Accuracy
0…299,9 V	0,1 V	±(3% m.v. + 2 digits)
300…750 V	1 V	±(3% m.v. + 2 digits)

• Frequency range: 45…65 Hz

The acronym “m.v.” stands for a “measured reference value”.



Electrical safety:

• type of insulation: double, in acc. with EN 61010-1 und IEC 61557
• measurement category: IV 600 V (III 1000 V) in acc. to EN 61010-1
• case protection rating in acc. with EN 60529: IP65

Other technical specifications:

• power supply of the meter SONEL L-1 NiMH 9,6 V; DC 12 V 2,5 A
• weight of the meter: approx. 0,9 kg
• dimensions: 200 x 180 x 77 mm
• display: LCD segment display
• measurement results memory: 990 cells, 11880 records,
• transmission of measurement results: USB
