The Sonel MIC-30 insulation resistance meter is perfect for users who deal with the testing of insulation of electrical installations in a repeated manner, e.g. in single- and multi-family buildings, as well as in public utility buildings and small plants and workshops.
The device enables the setting of the measurement voltage within the range from 50 V to 1000 V in 10 V steps, which makes it perfect for diagnosing electrical, control, telecommunications and ICT facilities.
Insulation resistance measurement:
selected test voltage: any voltage in the 50…1000 V range with 10 V step,
automatic measurement in sockets with the UNI-Schuko adapter with possibility of configuring pairs of measured cables,
continuous indication of insulation resistance or leakage current,
automatic discharge of capacitance of tested object after the insulation resistance measurement,
acoustic signalling of five-second periods to facilitate obtaining time characteristics,
measured test times T1, T2 i T3 to measure one or two absorption coefficients in the 1… 600 sec. range,
indication of actual test voltage during the measurement,
protection against measuring live objects,
three-lead measurement.
Continuity measurement of protective and equipotential conductors according to EN 61557 – 4 with the >200 mA current
Low-voltage circuit continuity and resistance measurement:
circuit resistance measurement (<1999 Ω ) with the <15 mA current,
quick sound signal if circuit resistance is below 30Ω.
Leakage current measurement.
Capacitance measurement during the RISO measurement
Measurement of alternating and direct voltages in the 0…600 V range.
990 memory cells and wireless data transmission to a computer using Bluetooth.
Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
Meters conform to EN 61557.
Electric safety:
type of insulation: double, according to EN 61010 – 1 and IEC 61557
measurement category: IV 600 V (III 1000 V) according to EN 61010 – 1
protection class acc. to EN 60529: IP67
Other technical specifications:
power suply: 4 alkaline batteries or or battery package Ni-MH
weight: ~1 kg
dimentions: 220 x 100 x 60 mm
Insulation resistance measurement
Measuring range according to EN 61557 – 2 for UN=50 V: 50 kΩ…250,0 MΩ
Range
Resolution
Accuracy
0,0…999,9 kΩ
0,1 kΩ
±(3% m.v. + 8 digits)
[±(5% m.v. + 8 digits)]*
1,000…9,999 MΩ
0,001 MΩ
10,0…99,99 MΩ
0,01 MΩ
100,0…250,0 MΩ
0,1 MΩ
*for the WS-04 lead
Measuring range according to EN 61557 – 2 for UN=100 V: 100 kΩ…500,0 MΩ
Range
Resolution
Accuracy
0,0…999,9 kΩ
0,1 kΩ
±(3% m.v. + 8 digits)
[±(5% m.v. + 8 digits)]*
1, 000…9,999 MΩ
0,001 MΩ
10,0…99,99 MΩ
0,01 MΩ
100,0…500,0 MΩ
0,1 MΩ
*for the WS-04 lead
Measuring range according to EN 61557 – 2 for UN=250 V: 250 kΩ…2,000 GΩ
Range
Resolution
Accuracy
0,0…999,9 kΩ
0,1 kΩ
±(3% m.v. + 8 digits)
[±(5% m.v. + 8 digits)]*
1,000…9,999 MΩ
0,001 MΩ
10,0…99,99 MΩ
0,01 MΩ
100,0…999,0 MΩ
0,1 MΩ
1,000…2,000 GΩ
0,001 GΩ
*for the WS-04 lead
Measuring range according to PN-EN 61557 – 2 for UN=500 V: 500 kΩ…20,00 GΩ
Range
Resolution
Accuracy
0,0…999,9 kΩ
0,1 kΩ
±(3% m.v. + 8 digits)
[±(5% m.v. + 8 digits)]*
1,000…9,999 MΩ
0,001 MΩ
10,00…99,99 MΩ
0,01 MΩ
100,0…999,0 MΩ
0,1 MΩ
1,000…9,999 GΩ
0,001 GΩ
±(4% m.v. + 6 digits)
[±(6% m.v. + 6 digits)]*
10,00…20,00 GΩ**
0,01 GΩ
*for the WS-04 lead
**for the WS-04 lead range to 10 GΩ
Measuring range according to EN 61557 – 2 for UN=1000 V: 1000 kΩ…10,00 GΩ
Range
Resolution
Accuracy
0,0…999,9 kΩ
0,1 kΩ
±(3% m.v. + 8 digits)
1,000…9,999 MΩ
0,001 MΩ
10,00…99,99 MΩ
0,01 MΩ
100,0…999,0 MΩ
0,1 MΩ
1,000…9,999 GΩ
0,001 GΩ
±(4% m.v. + 6 digits)
10,00…99,99 GΩ
0,01 GΩ
100,0 GΩ
0,1 GΩ
Continuity measurement of protective and equipotential conductors with the 200 mA current
Measuring range according to EN 61557 – 4: 0,10…1999 Ω
Range
Resolution
Accuracy
0,00…19,99 Ω
0,01 Ω
±(2% m.v. + 3 digits)
20,0…199,9 Ω
0,1 Ω
200…1999 Ω
1 Ω
±(4% m.v. + 3 digits)
Voltage on open terminals: <8 V
Output current at R <2 Ω: ISC >200 mA: ISC >200 mA
Compensation of test leads’ resistance
Unidirectional current flow
Low-voltage and resistance measurement
Range
Resolution
Accuracy
0,0…199,9 Ω
0,1 Ω
±(3% m.v. + 3 digits)
200…1999 Ω
1 Ω
Voltage on open terminals: <8 V
Current for closed terminals 5 mA < ISC < 15 mA
Sound signal and green LED on when measured resistance < 30 Ω ± 50%
Compensation of test leads’ resistance,
Capacitance measurements
Range
Resolution
Accuracy
1…999 nF
1 nF
±(5% m.v. + 5 digits)
1,00…9,99µF
0,01µF
Capacitance value displayed during the RISO measurement
For test voltages below 100 V and measured resistance below 10 MΩ, unspecified capacitance measurement error

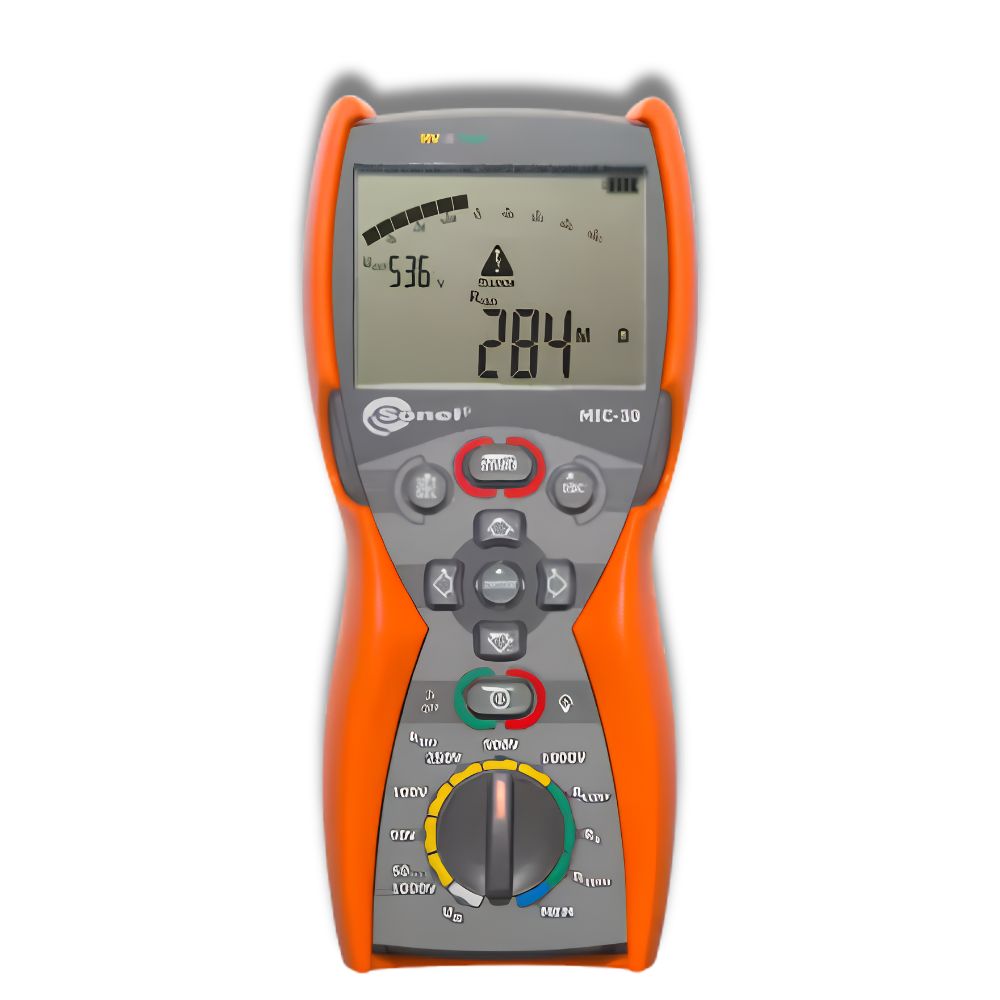

MIC-30 Insulation Resistance Meter WMGBMIC30
$990.00 incl GST
Limited Stock
Measure insulation resistance up to 100 GΩ
The Sonel MIC-30 insulation resistance meter is perfect for users who deal with the testing of insulation of electrical installations in a repeated manner, e.g. in single- and multi-family buildings, as well as in public utility buildings and small plants and workshops.
Description
The device enables the setting of the measurement voltage within the range from 50 V to 1000 V in 10 V steps, which makes it perfect for diagnosing electrical, control, telecommunications and ICT facilities.
Insulation resistance measurement:
Continuity measurement of protective and equipotential conductors according to EN 61557 – 4 with the >200 mA current
Low-voltage circuit continuity and resistance measurement:
Leakage current measurement.
Capacitance measurement during the RISO measurement
Measurement of alternating and direct voltages in the 0…600 V range.
990 memory cells and wireless data transmission to a computer using Bluetooth.
Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
Meters conform to EN 61557.
Electric safety:
Other technical specifications:
Insulation resistance measurement
Measuring range according to EN 61557 – 2 for UN=50 V: 50 kΩ…250,0 MΩ
[±(5% m.v. + 8 digits)]*
*for the WS-04 lead
Measuring range according to EN 61557 – 2 for UN=100 V: 100 kΩ…500,0 MΩ
[±(5% m.v. + 8 digits)]*
*for the WS-04 lead
Measuring range according to EN 61557 – 2 for UN=250 V: 250 kΩ…2,000 GΩ
[±(5% m.v. + 8 digits)]*
*for the WS-04 lead
Measuring range according to PN-EN 61557 – 2 for UN=500 V: 500 kΩ…20,00 GΩ
[±(5% m.v. + 8 digits)]*
[±(6% m.v. + 6 digits)]*
*for the WS-04 lead
**for the WS-04 lead range to 10 GΩ
Measuring range according to EN 61557 – 2 for UN=1000 V: 1000 kΩ…10,00 GΩ
Continuity measurement of protective and equipotential conductors with the 200 mA current
Measuring range according to EN 61557 – 4: 0,10…1999 Ω
Low-voltage and resistance measurement
Capacitance measurements
Measurement of alternating and direct voltage
Frequency range: 45…65 Hz

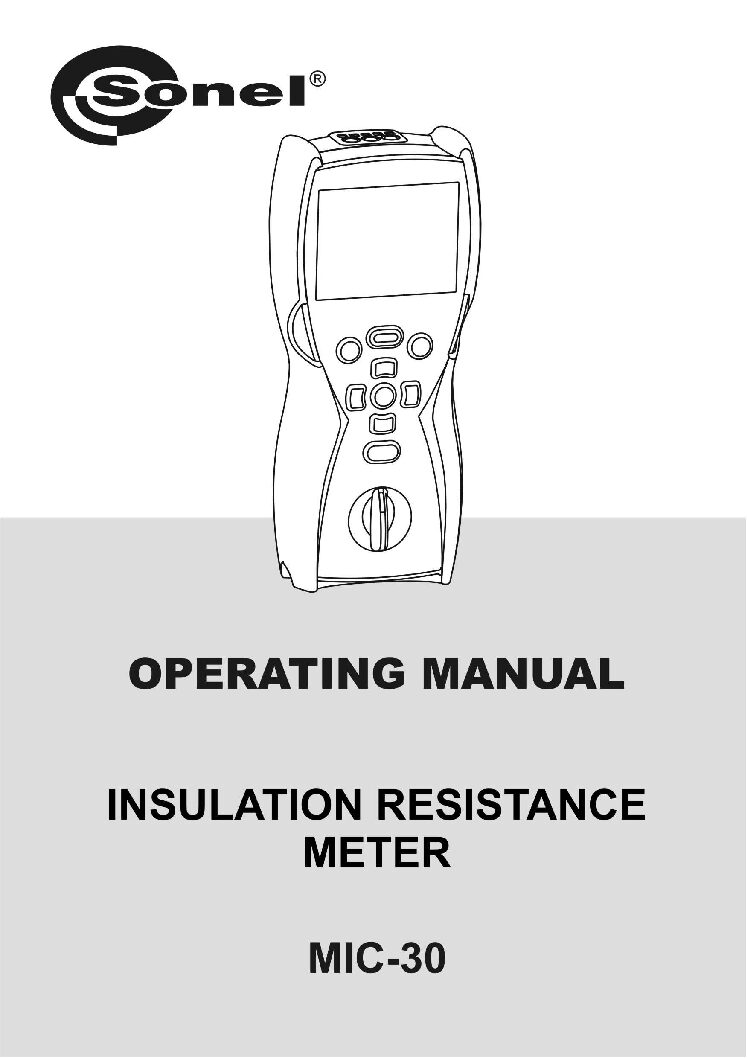

MIC-30 User Manual

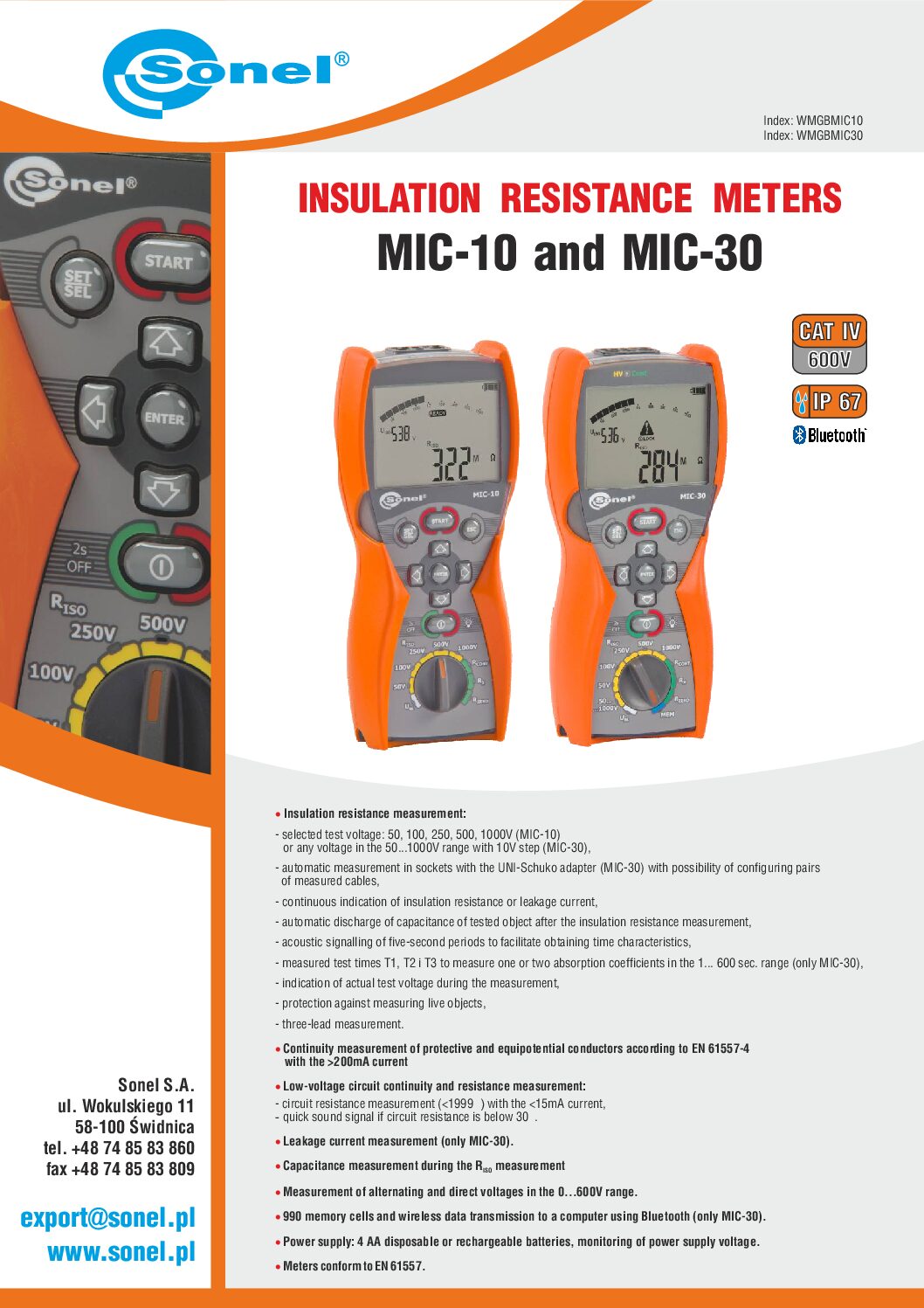

MIC-30 Product Information/Data Sheet
